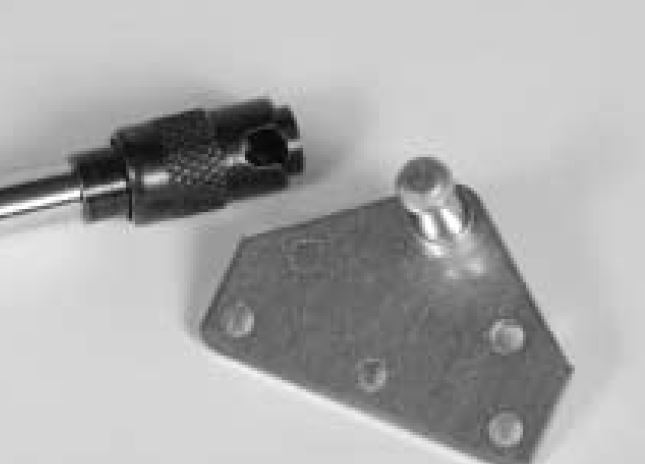

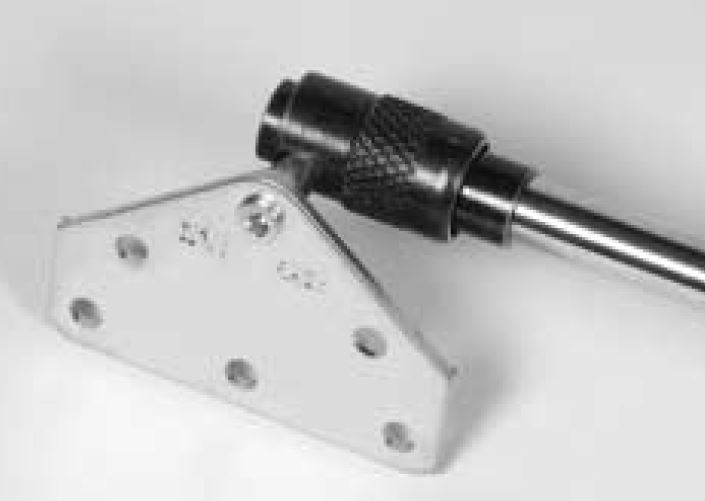

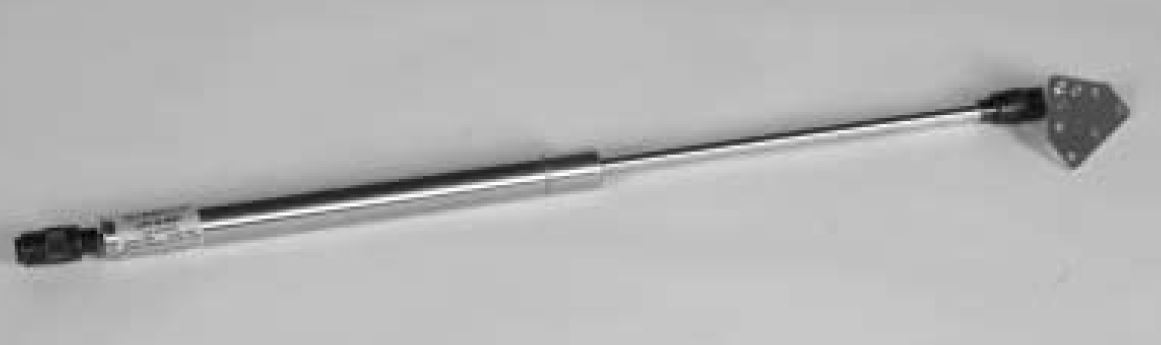

This part is designed to fit a gas spring. The Quick Release comes with metric threads for easy attachment and will fit 10 mm ball studs.

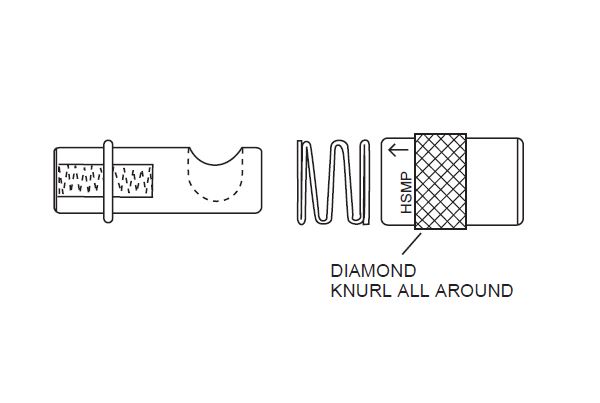

This Quick Release has a large knurl for easy handling and operation.
Ideal for tonneau covers and other applications that require frequent and convenient removal.
| PART NO | THREAD SIZE | BALL SIZE |
|---|---|---|
| QR6-10 | 6 mm | 10 mm |
Brackets can be ordered with any of the riveted type ball studs. The part numbers for Short Ball (SB) and Long Ball (LB) studs are listed in the catalog, please specify when ordering BS, SP or XLB studs. Ten millimeter ball stud diameters are .384/.389. Other size ball studs and/or holes are available upon request, please contact your Hibshman sales representative with your specifications.
Heat treating is also available on most parts at the customers request and an additional cost.
All parts are designed and produced to Hibshman Screw Machine Products, Inc. specifications and are not intended for any specific application.
