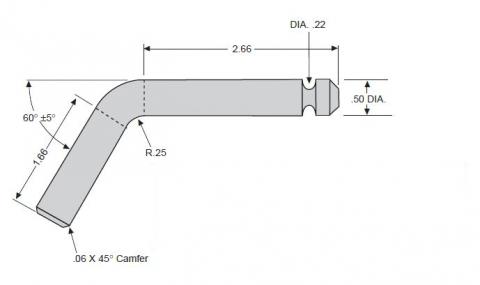

Made to order with holes or grooves; this versatile fastener can be made from material to fit your application. Made from steel (zinc plated) or a corrosion resistant stainless 303. Please state diameter, length and finish when ordering.
| PART NO. | SIZE | FINISH |
|---|---|---|
| HP-001 | 1/2” dia. x 2.7 | Clear Zinc Plate |
| HP-002 | 1/2” dia. x 2.7 | Yellow Zinc Plate |
| HP-003 | 1/2” dia. x 2.7 | 303 Stainless |
Brackets can be ordered with any of the riveted type ball studs. The part numbers for Short Ball (SB) and Long Ball (LB) studs are listed in the catalog, please specify when ordering BS, SP or XLB studs. Ten millimeter ball stud diameters are .384/.389. Other size ball studs and/or holes are available upon request, please contact your Hibshman sales representative with your specifications.
Heat treating is also available on most parts at the customers request and an additional cost.
All parts are designed and produced to Hibshman Screw Machine Products, Inc. specifications and are not intended for any specific application.
